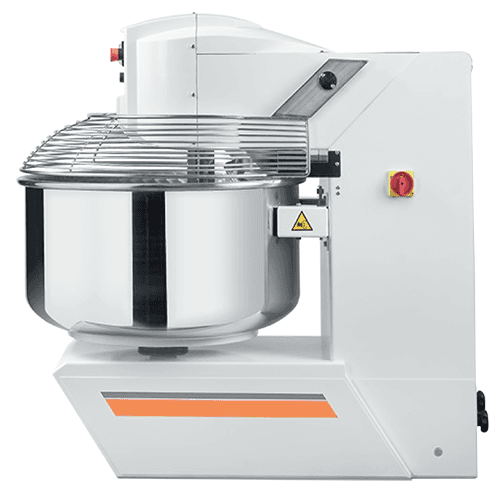

22 QT Spiral Mixer with Removable Bowl and Timer – 120V, 750W

ITEM #: 47287

MODEL: MX-IT-0020-RT



Product Highlights

FEATURES:
• Made from large thickness C40 steel
• Scratch resistant powder coating
• The bowl is made with reinforced edge and AISI 304 stainless steel shaft
• Forged spiral tool
• Lid with opening to add ingredients during operation
• High efficiency ventilated motor with oil-bath gear box
• Thermal overload protection circuit breaker



Technical Specifications

Bowl Capacity: 22 QT
Max Dry Flour Capacity: 23 lb. (10.5 kg.)
Max Dough Capacity: 37.5 lb. (17 kg.)
RPM (Bowl/Spiral): 10 / 85
Power: 750 W / 1 hp
Electrical: 120V / 60Hz / 1Ph



Bowl Dimensions: Ø 14.2” x 8.3” (360 x 210 mm)
Net Weight: 184.1 lb. ( 83.5 kg.)
Net Dimensions (WDH): 15.7” x 29.6” x 25” (398 x 751 x 635 mm) Open Lid: 44.3” (1125 mm)
Gross Weight: 209.4 lb. (95 kg.)
Gross Dimensions (WDH): 22.8” x 32.7” x 39.4” (580 x 831 x 1000 mm)
