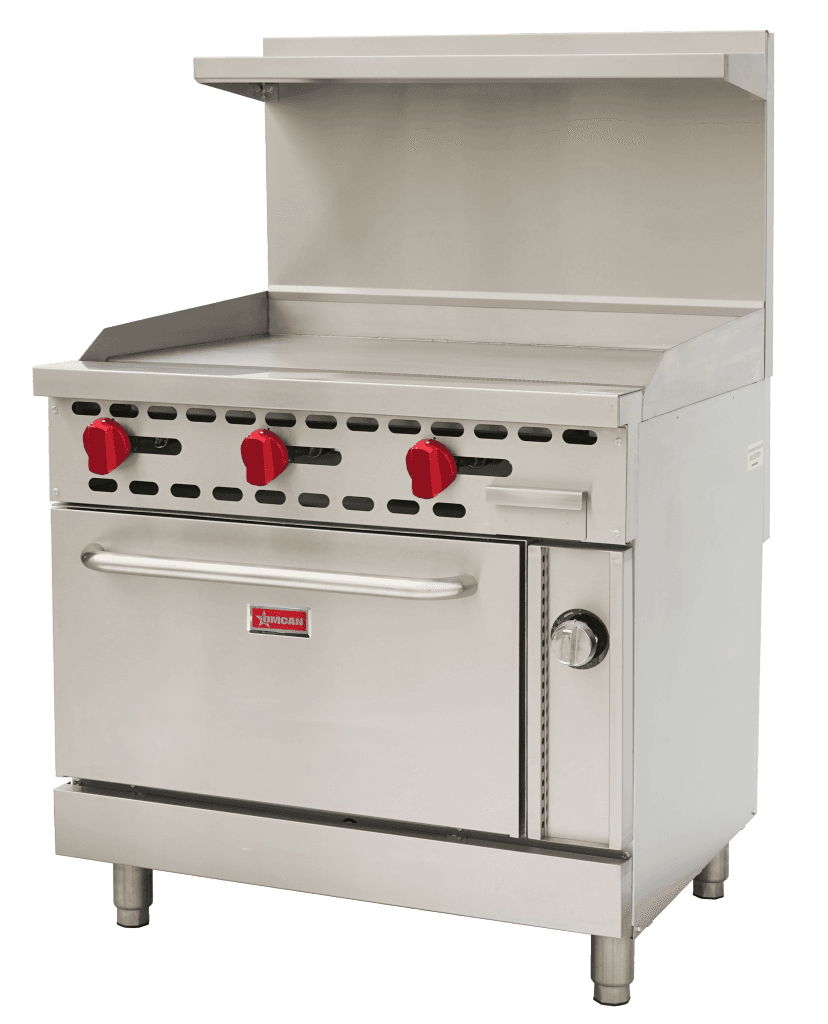

36″ Commercial Gas Range with 36″ Griddle and Standard Oven 93,000 BTU – Natural

Item: 48189

Model: CE-CN-0914G-RC



• Stainless steel front and galvanized sides
• U-shape griddle burner with 21,000 BTU/hr for natural gas and 23,000 BTU/hr for LPG
• Thermostat (250℉- 550 ℉ ) controlled oven
• Welded frame structure for best stability
• 36 ” x 22″ griddle plate(5/8″ thickness) with splash guard
• Adjustable heavy-duty legs
• Oil collector with handle
• U-shape oven burner with 30,000 BTU/hr
• Thermal coupling safety valve for the oven
• Stainless steel oven door with good insulation
• Stainless steel handle for bottom oven
• Kick plate at the bottom, easy access for servicing
• Compatible with ¾” NPT gas connection (Gas Hose sold separately)



Technical

GAS TYPE: Natural
BTU: 93,000 BTU (Griddle: 21,000 BTU x 3 / Oven: 30,000 BTU)
GRIDDLE DIMENSIONS (Griddle Plate) : 36 ” x 22″ (5/8″ thickness)
OVEN DIMENSIONS: 26.5″ x 25.8″ x 13.9″ (673 x 655 x  353 mm)
OVEN TEMPERATURE RANGE: 121.1 – 287.8°C (250 – 550°F)
NET DIMENSIONS: 36″ x 32.6″ x 56.7″ (914 x 829 x 1440 mm)
GROSS DIMENSIONS: 40.9″ x 40.5″ x 35″ (1040 x 1030 x 890 mm)
NET WEIGHT: 456 lbs (207 kg)
GROSS WEIGHT: 518 lbs (235 kg)
