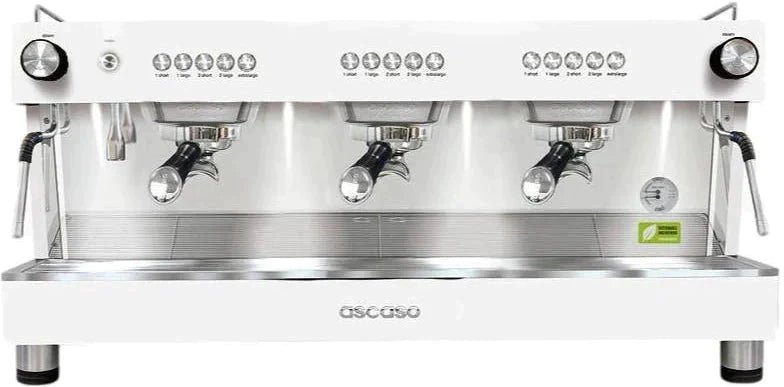

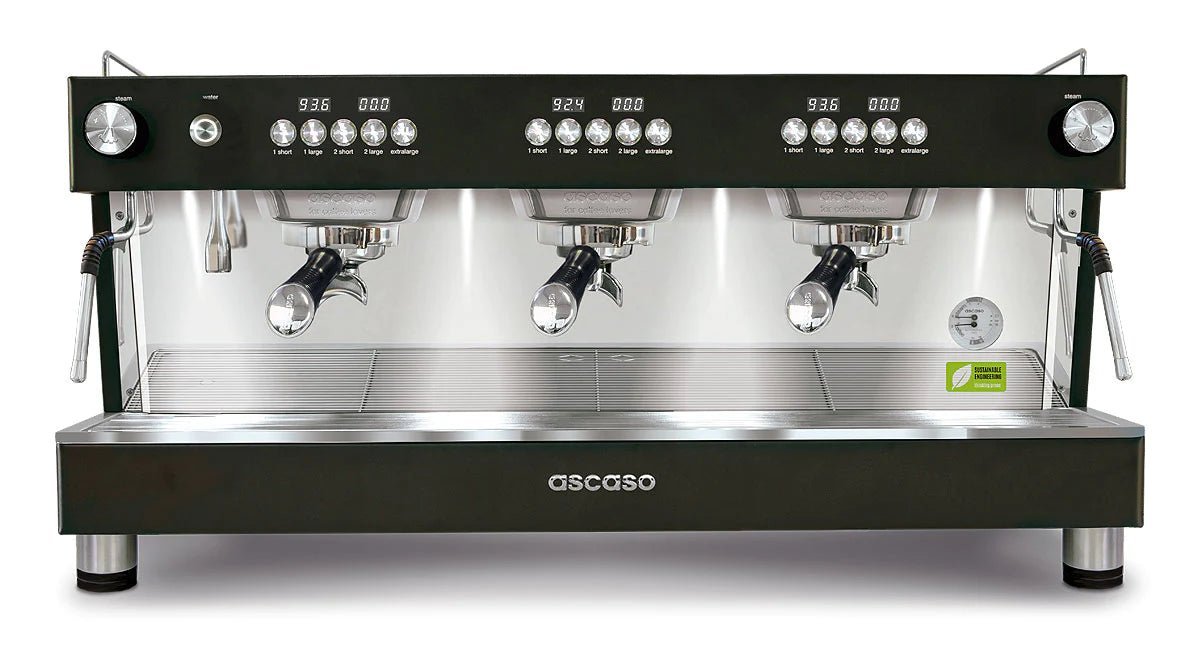

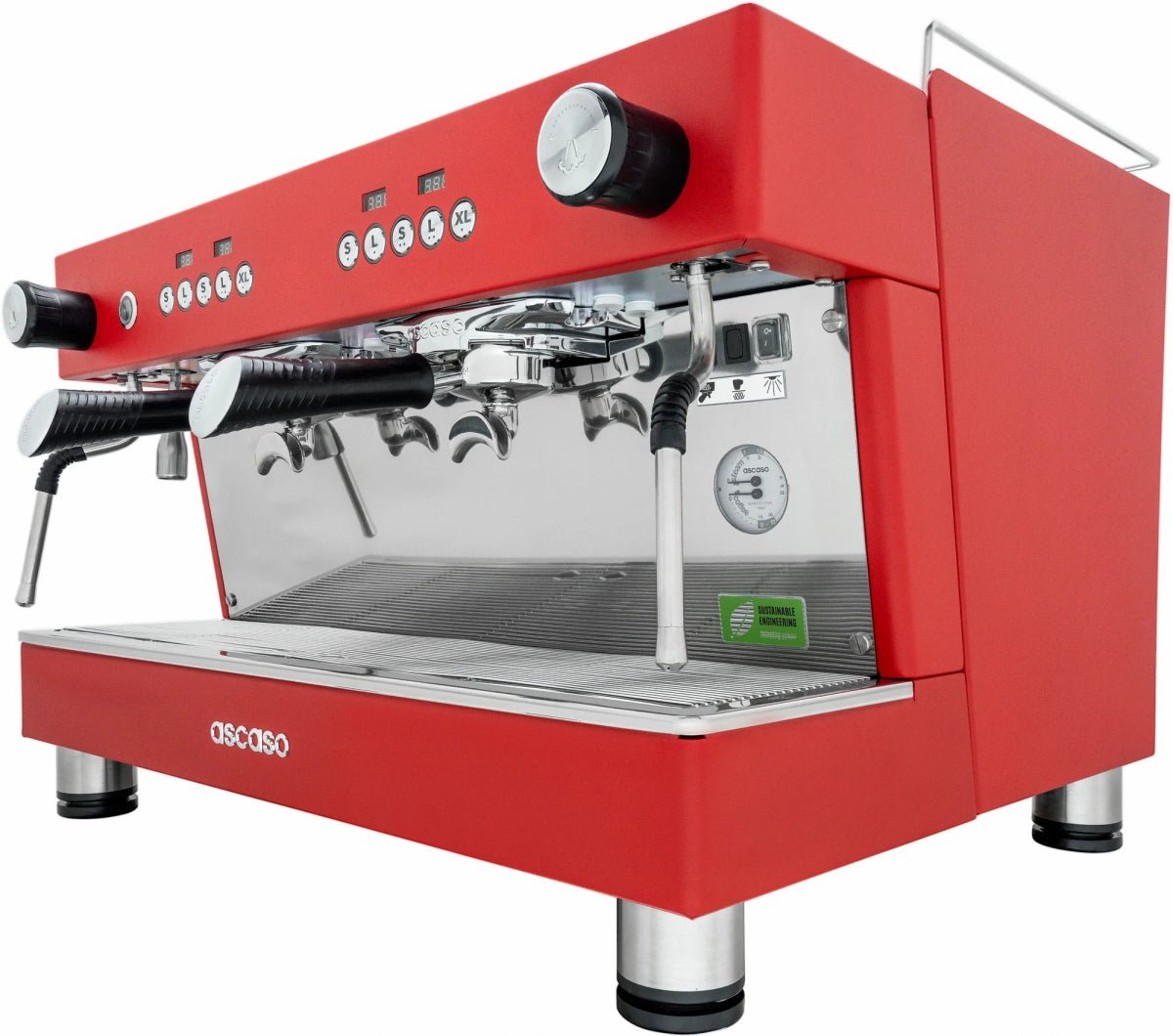

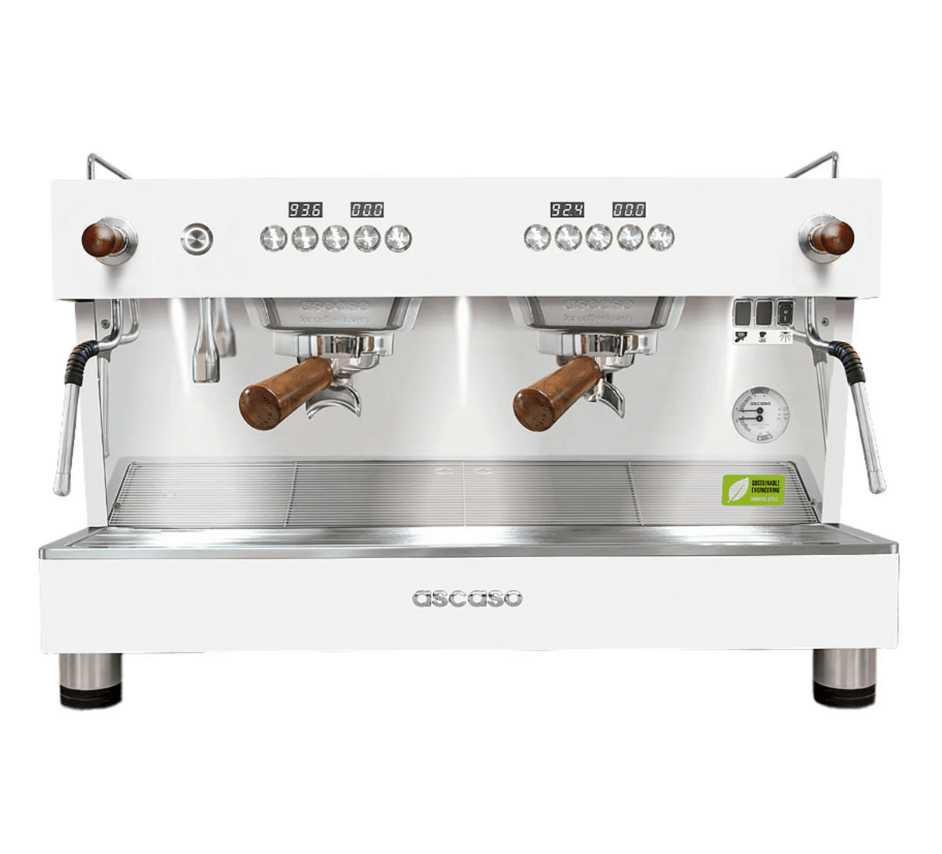

Ascaso - Barista T One Espresso Machine

T-Technology© inside by Ascaso

Multi-group technology. Full PID control. Offers great thermal stability with a high level of energy efficiency (low energy consumption) and clean and fresh water in each coffee.

Features and Functionality

• Multi-group technology (on/off by group). Professional thermodynamic groups
• Independent steam boiler. Stainless steel AISI 316. Extremely sturdy. Large Capacity
• External PID control (+0.1°C) for each group and steam boiler
• External timer for each group
• Digital Display in each group. Multiple functions. Total control
• Thermal lagging on steam boiler and groups
• Thermal stability (+/- 0.5°C)
• Dynamic preheating (Coffee groups)
• Energy efficient (-50%)
• High-performance volumetric pump. Constant pressure even after prolonged and simultaneous use of more groups.
• Powerful steamer (10mm anti-limescale tube. Stainless steel. Cool touch)
• High-precision filters in AISI 304 stainless steel
• Designed for baristas. LED in the work area. 5 volume selections. PID controls
• ETL certified to Canadian Standard

Technical Data

Barista T One	2 Group
Dimensions (inches) W X H X D	28 x 19 x 21
Boiler Power (220V)	5719W 50-60Hz 25A
Coffee Groups Power (W)	1000 x 2
Weight (lbs)	157
Boiler Capacity (L)	8.5
Steam	2
Water	1
Maximum Cup Height (Normal/Raised) (cm)	9/12
Dynamic Pre-heating	Yes
Adjustable Feet	Yes
Pump/Boiler Pressure Double Gauge	Yes
Rotary Pump Motor (200L)	Yes
Filter Holder 1-2 Coffees (Stainless Steel)	1/2
Electronic Auto level	Yes
Boiler Drain Valve	Yes
Empty Valve/Safety Valve	Yes
Volumetric Dosing	Yes
Barista Lights	Yes
Heating Elements & Rotary Pump Stainless	Yes
Coffee Temperature PID Control (0.1°C Precision)	Yes
Steam Temperature PID Control(1°C Precision)	Yes
Digital Multifunction Display	Yes
Pre-infusion	100% adjustable (0.1s Precision)
Hot Water with Solenoid	Yes
