Kromo Dupla-50-USA High-Temperature Undercounter Dishwasher | Trento – 220-240 W

Kromo Dupla-50-USA High-Temperature Undercounter Dishwasher | Trento – 220-240 W, 1 Ph, 7.09 kW



ITEM #: 49126

MODEL: CD-IT-50-2-DUPLA



Product Highlights

FEATURES
• Double walled AISI 304 structure

• 2 wash cycles

• Overflow and drain pipes integrated system, for a triple protection of the wash pump

• Anti-drop roof panel

• Door security microswitch

• Pressed basket supports

• Split wash and rinse arms

• Built-in rinse-aid dispenser

• Fully automatic process

• Standard drain pump

• Detergent Dispenser



Product Overview

Introducing the Kromo Dupla-50-USA High-Temperature Undercounter Dishwasher, the ultimate solution for your commercial dishwashing needs. This powerful machine combines cutting-edge technology with a compact design to bring you exceptional efficiency and sparkling results, all while fitting snugly beneath your counter.

Features That Redefine Efficiency:

Robust Construction: Built to withstand the rigors of a demanding commercial kitchen, the Kromo Dupla-50-USA features a double-walled AISI 304 stainless steel structure. This not only ensures durability but also enhances insulation for quieter operation and energy efficiency.

Dual Wash Cycles: With the flexibility of two wash cycles, this dishwasher adapts to your specific needs. Whether it's lightly soiled glassware or heavily soiled pots and pans, you can count on this machine to deliver spotless results every time.

Triple Protection System: Safety and reliability are paramount. The integrated overflow and drain pipes provide a triple layer of protection for the wash pump, minimizing the risk of damage and maximizing the longevity of your investment.

Anti-Drop Roof Panel: The anti-drop roof panel ensures that water and detergent are contained within the machine, preventing any unwanted drips or spills outside the unit and maintaining a clean and organized workspace.

Enhanced Security: Your staff's safety is of utmost importance. With the door security microswitch, the dishwasher will only operate when the door is securely closed, preventing accidents and ensuring smooth, incident-free operation.

Optimized Basket Support: Pressed basket supports guarantee secure placement of your dishware, preventing slipping during the wash cycle. This not only ensures thorough cleaning but also helps protect your valuable glassware and dinnerware.

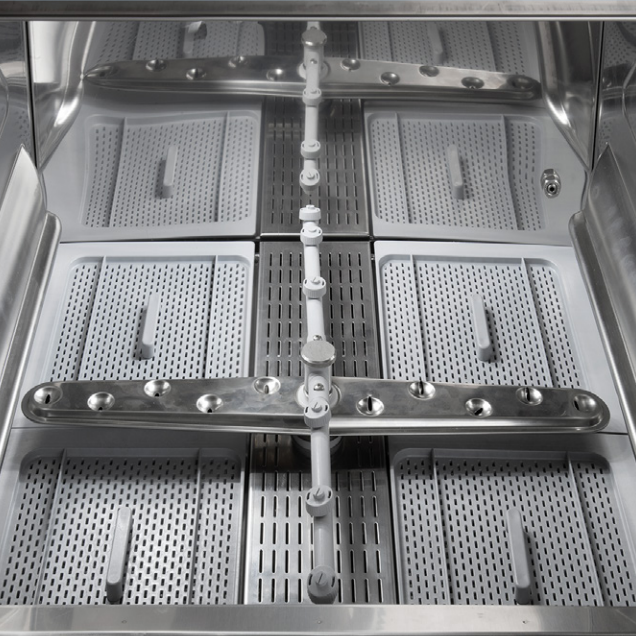

Efficient Wash and Rinse: Split wash and rinse arms provide comprehensive coverage for all your dishes, ensuring that every nook and cranny is thoroughly cleaned, leaving no room for stubborn residue.

Built-in Rinse-Aid Dispenser: For that extra sparkle, this dishwasher comes equipped with a built-in rinse-aid dispenser. Say goodbye to streaks and water spots on your glassware.

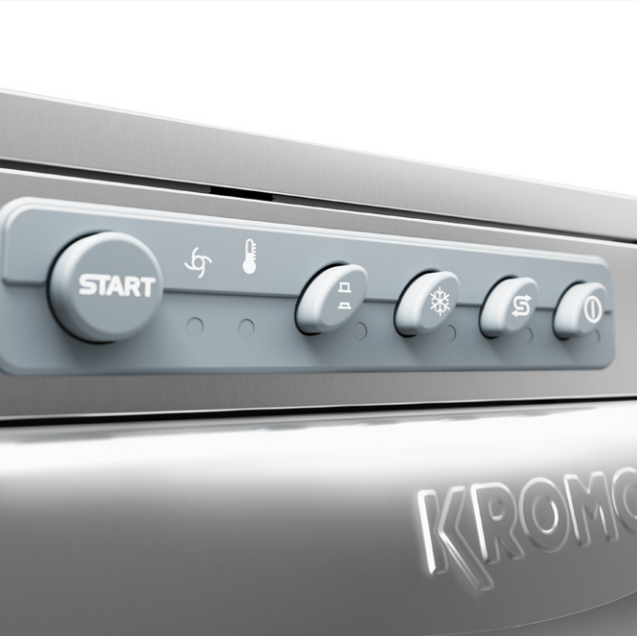

Fully Automatic Process: Simplify your dishwashing routine. This unit offers a fully automatic process, from washing to rinsing, guaranteeing consistently high-quality results with minimal manual intervention.

Standard Drain Pump: The inclusion of a standard drain pump ensures efficient wastewater removal, allowing for versatile installation options and further enhancing the convenience of this undercounter dishwasher.

The Kromo Dupla-50-USA High-Temperature Undercounter Dishwasher is a game-changer in commercial dishwashing. Its superior design, advanced features, and focus on safety and efficiency make it an invaluable addition to any restaurant, bar, or commercial kitchen. Embrace the future of dishwashing technology with this exceptional undercounter dishwasher.



Technical Specifications

Water Hardness: 2 - 8 °F
Rinsing Temperature (Set): 185 °F (85 °C)
Tank Capacity: 28.5 Qt. (27 L)
Tank Heating Element: 2940 W
Tank Temperature (Set): 160 °F (71 °C)
Booster Capacity: 6 Qt. (5.67 L)
Booster Heating Element: 6530 W
Inlet Water Pressure: 25 - 90 PSI



Power: 7090 W
Electrical: 220-240V / 60 Hz / 1 Ph
Water Consumption / Cycle (rinse pressure 15 PSI): 2.96 Qt. (2.8 L)
Washing Cycles (sec): 1 (120) | 2 (180
Water Supply 131 °F Racks /H (*)(1): 30 | 20
Water Supply 50 °F Racks /H (*)(1): 21 | 20
Pump Power: 560 W (359 Qt./339 L per minute***)
Drain Pump: 43 W hMAX 31.5” (800 mm) (43.12 Qt. / 40.8 L***)
Noise: 59.3 dB(A)

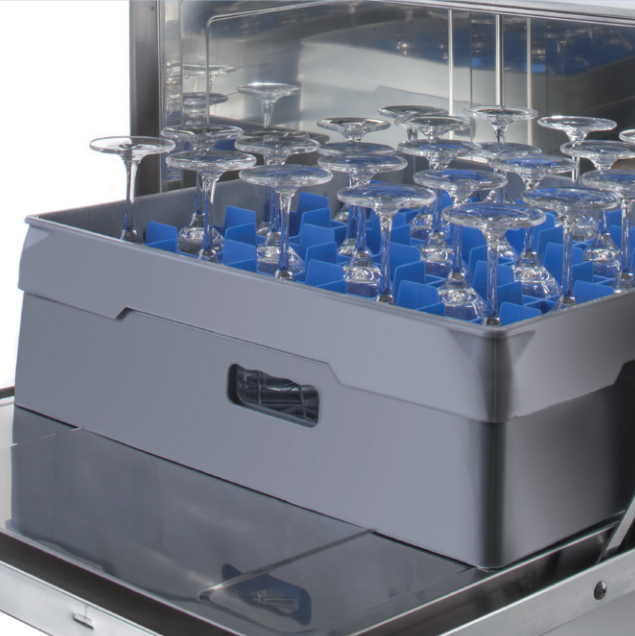

Rack Equipment: (1) Plastic Plates Basket | (1) Large Mesh Glass Basket | (1) Cutlery Basket
Rack Dimensions: 20” x 20” (508 x 508 mm)
Crockery Dimensions Plates: 12.81” (325 mm) dia.
Dishes Max Height: 12.18” (309 mm)



Net Weight: 150 lb. (68 kg.)
Net Dimensions (WDH): 23.43” x 24” x 33.31” (595 x 610 x 846 mm)
Gross Weight: 169 lb. (76.5 kg.)
Gross Dimensions (WDH): 26” x 26” x 40” (660 x 660 x 1010 mm)

(*) Standard Thermostop
(1) In case of cold water supply and/or continuous washing, the rinse-water heating process might take more time than usual, until the proper rinse temperature is reached. For this reason, the wash-cycle total timing might result longer than set.
(***) Maximum Flow Rate
